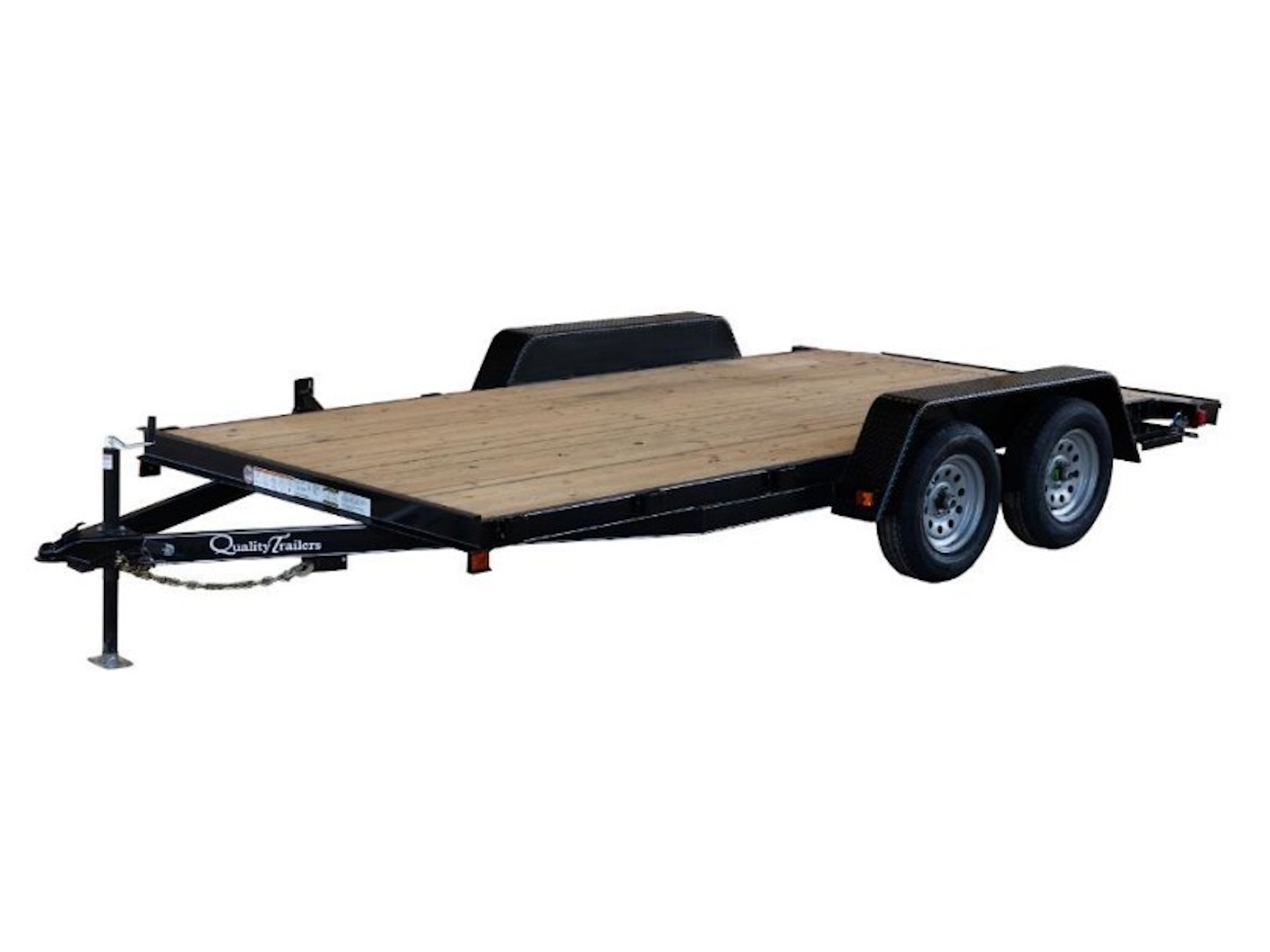

2026 Quality Trailers Wood Floor 7000 Economy Series 82 in x 16 ft – One Brake Axle

Wood Floor Car Haulers

Economy Series Wood Floor Car Trailers are built with a 4″ channel frame and 4″ channel wrap-around tongue.  Running gear is spring suspension 3,500 lb. axles with radial tires. This trailer is available with one brake axle or two brake axles. A treated wood floor with 2′ dovetail and stud-mounted lighting are standard. There is no reflective tape on Economy models. The ramps are 51″ long and slide in to tracks from either side behind the fenders. This model is available in 16′ and 18′ lengths.

General Duty models upgrade to a 5″ channel main frame with 4″ channel wrap-around tongue and 3″ channel crossmembers. Running gear is spring suspension 3,500 lb. axles with 4-wheel brakes and radial tires. The ramps are 5′ long and slide in to tracks from the rear of the trailer. A standard 2′ dovetail, a treated wood floor, rubber mounted sealed beam lighting, and skip reflective tape are standard. General Duty models are available in 16′, 18′, and 20′ lengths in 7,000, 8,500, and 10,000 GVW ratings.

Professional Grade Trailers are also manufactured with a 5″ channel main frame with 4″ channel wrap-around tongue and 3″ channel crossmembers. We add rub rails on the stake pockets and have 5′ long ramps that slide in to tracks from the rear of the trailer. A standard 2′ dovetail ensures safe loading in all conditions. A US made sealed wiring harness with all LED lighting and full reflective tape comprise the upgraded lighting package. Professional Grade models are available in 16′, 18′, and 20′ lengths in 7,000, 8,500, and 10,000 GVW ratings.

Economy Series – Standard Features

GVWR 7000 lb. – Capacity 6000 lb. with 1000 lb. Hitchload

Must support rear of trailer when loading vehicle over 3,000 lb.

Features May Include:

• 16 ft. or 18 ft. treated wood deck
• Standard 2 ft. dove tail
• 82″ between fenders
• 3500 lb. axles with 1 braking axle (second brake axle optional)
• Double eye spring suspension
• 205/75 R15 load range C 6 ply rating Castle Rock Radial tires
• 4″ channel frame
• 4″ channel wrap-around tongue
• 2x2x1/4″ angle cross members- 24″ spacing
• 51″ self storing ramps (slide-in from side)
• 2 5/16″ A-frame coupler
• Top wind jack
• Diamond plate fenders with backs
• Stake pockets, self charging break away kit, safety chains, and DOT approved lighting
• Primed, 2 coats of acrylic enamel, pin striped

Options

• Second braking axle
• Spare tire and wheel
